VWX4-L
HAZARDOUS LOCATION LED VAPOR TIGHT, CLASS I, DIVISION 2 & CLASS III, DIVISION 1 & 2
The VWX4-L is an IP66, IP67, NSF rated sealed 4 foot linear luminaire for use in hazardous locations when gases and liquids may be present. Acetylene, hydrogen, ether, hydrocarbons, fuels, solvents etc. that are not normally present in an explosive concentration (but may accidently exist).
Housing:
The housing is constructed from a one piece glass reinforced white fiberglass. A closed cell, high temperature poured in place gasket and polycarbonate latches seal the enclosure from most hostile environments. The fixture comes standard with an impact resistant acrylic frosted lens

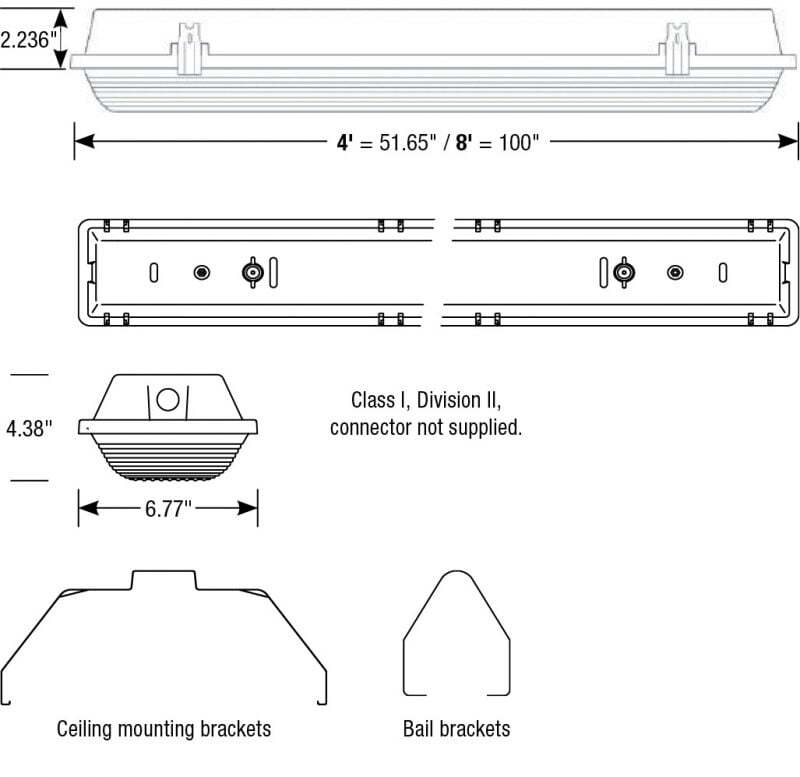

Mounting:
Ceiling mounting brackets and mounting bail brackets for suspended mount included. Hardware in stainless steel.
Specifications:
The A1 package comes standard with a -40°C driver and 0-10V dimming function.
Colour Temperature
3500K,
4000K,
5000K
Fixture Type
Vapor Tight
Size
4"
Light Source
LED
Lumen Output Range
0-4000 lm,
4001-7000 lm,
7001 - 11 000 lm
Ratings
IP65,
IP66,
IP67,
Nema 4X,
Hazardous,
NSF
