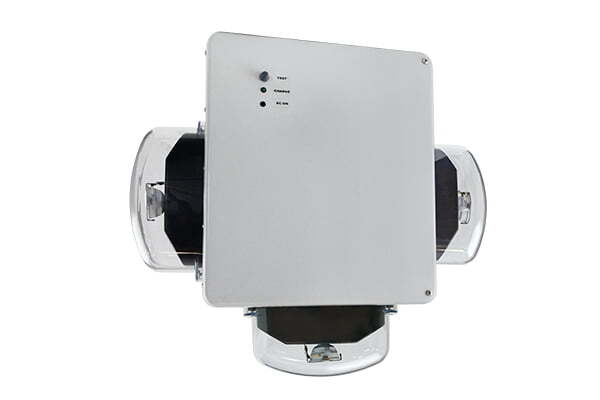

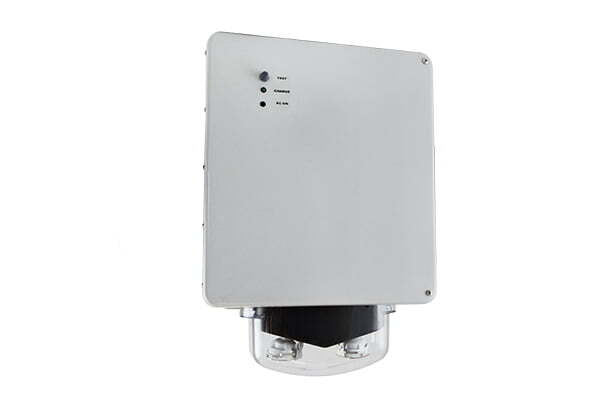

EBWD
WEATHER-PROOF BATTERY UNIT
The EBWD series of NEMA4X and EEMAC4X rated weatherproof battery units is designed to operate in the most extreme environments. The fully gasketed, reinforced, non-metallic housing features a hinged cover that secures with durable screw locks. Supplied with wet location anti vandal heads designed to perform in extreme environments, they are completely protected from the elements within a fully gasketed polycarbonate housing.
120/347 VAC or 277 VAC, 60Hz InputHigh efficiency, rapid recovery, precision control charging systemMomentary push button test switchDiagnostic/pilot LED for AC ON and CHARGEFully automatic, current limiter chargerLine latched, low voltage protectionBrownout and short circuit protectionMaintenance free, sealed lead acid batteryNon-Metallic Housing, grey finish standardHeads Polycarbonate enclosure fully gasketed to prevent water infiltrationCSA Certified to C22.2 141-15
Casting Colour
Grey
Environment
Wet
Lamp Type
LED
Material
Polycarbonate,
Fiber glass
Mounting
Wall
Number of Lamps
1,
2,
3
Ratings
Nema 4X
Voltage
12V,
24V,
6V
